Drawing class

The Drawing class represents a renderable 2D object that appears on the user's screen. Every specific drawing type (e.g. Circle, Text, Line) inherits from this base and extends it with shape-specific properties.

Drawing objects are not instances - they are client-only graphical primitives that do not interact with the 3D world and must be managed manually.

Constructor

Creates a new render object of the specified type. These objects render directly onto the game window and do not exist in the DataModel.

Inheritance

The returned object inherits from the base Drawing class, and will have specific properties based on its type.

function Drawing.new(type: string): Drawing

Parameters

Parameter	Description
`type`	The type of drawing to create. Must be one of: `Line`, `Text`, `Image`, `Circle`, `Square`, `Quad`, or `Triangle`.

Shared properties

Note about the behaviour of the Transparency property

Some implementations of the Drawing library by executors have mistakenly treated the Transparency property as opacity rather than actual transparency. This confusion originates from the original UNC documentation, which incorrectly defined transparency as "the opacity of the drawing" (quite literally wrong, the opposite!).

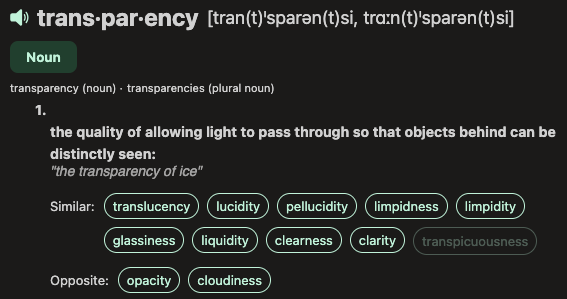

Definition of the word "Transparency"

In sUNC, we follow the correct meaning of the word. Transparency represents true transparency, where 0 means fully opaque and 1 means fully transparent (see-through). This also aligns with how Roblox handles their transparency property on some instances (e.g. Part, Frame, etc).

All drawing object types inherit the following fields:

Property	Type	Description
`Visible`	`boolean`	Whether the object is rendered. Defaults to `false`.
`ZIndex`	`number`	Render order; higher values appear on top.
`Transparency`	`number`	Translucency, where `1` is fully transparent and `0` is fully visible.
`Color`	`Color3`	The color of the drawing.
`__OBJECT_EXISTS`	`boolean`	Whether the drawing object exists.

Methods

Method Signature	Description
`Destroy()`	Permanently removes the drawing from view.

Shape-specific types

Each subtype of Drawing exposes unique fields that define their visual representation. Below are the supported types:

Line

Property	Type	Description
`From`	`Vector2`	Start position of the line.
`To`	`Vector2`	End position of the line.
`Thickness`	`number`	Width of the line.

Text

Property	Type	Description
`Text`	`string`	The text content to render.
`TextBounds`	`Vector2` 🔒	Computed text size (read-only).
`Font`	`Drawing.Font`	Font to use.
`Size`	`number`	Size of the text.
`Position`	`Vector2`	Top-left corner of the text.
`Center`	`boolean`	Horizontally center the text.
`Outline`	`boolean`	Whether to draw an outline.
`OutlineColor`	`Color3`	Outline color.


Property	Type	Description
`Data`	`string`	Raw image byte string (e.g. from `readfile`).
`Size`	`Vector2`	Size of the rendered image.
`Position`	`Vector2`	Top-left corner of the image.
`Rounding`	`number`	Amount of corner rounding (optional aesthetic).

Circle

Property	Type	Description
`NumSides`	`number`	Number of sides used to approximate the circle.
`Radius`	`number`	Radius of the circle.
`Position`	`Vector2`	Center point of the circle.
`Thickness`	`number`	Outline thickness (if not filled).
`Filled`	`boolean`	Whether the circle is filled.

Square

Property	Type	Description
`Size`	`Vector2`	Size of the rectangle.
`Position`	`Vector2`	Top-left corner.
`Thickness`	`number`	Outline thickness (if not filled).
`Filled`	`boolean`	Whether the square is filled.

Quad

Property	Type	Description
`PointA`	`Vector2`	First point.
`PointB`	`Vector2`	Second point.
`PointC`	`Vector2`	Third point.
`PointD`	`Vector2`	Fourth point.
`Thickness`	`number`	Outline thickness (if not filled).
`Filled`	`boolean`	Whether the quad is filled.

Triangle

Property	Type	Description
`PointA`	`Vector2`	First point.
`PointB`	`Vector2`	Second point.
`PointC`	`Vector2`	Third point.
`Thickness`	`number`	Outline thickness (if not filled).
`Filled`	`boolean`	Whether the triangle is filled.

Examples

Using the `Destroy` method

Creating a circle and destroying the drawing object
local Camera = game.Workspace.CurrentCamera
local Viewport = Camera.ViewportSize
local Position = Vector2.new(Viewport.X / 2, Viewport.Y / 2)

local circle = Drawing.new("Circle")
circle.Radius = 50
circle.Color = Color3.fromRGB(255, 0, 0)
circle.Filled = true
circle.NumSides = 150
circle.Position = Position
circle.Transparency = 0
circle.Visible = true

print(circle.__OBJECT_EXISTS) -- Output: true
circle:Destroy()
print(circle.__OBJECT_EXISTS) -- Output: false

Drawing an Image

Rendering a centered image
local Camera = game.Workspace.CurrentCamera
local Viewport = Camera.ViewportSize
local Position = Vector2.new(Viewport.X / 2, Viewport.Y / 2)
local image = Drawing.new("Image")
image.Data = readfile("your_image.png")
image.Size = Vector2.new(455, 155)
image.Visible = true
image.Position = Position

task.wait(2)
image:Destroy()

Using the `__OBJECT_EXISTS` property

Rendering a centered image
local Camera = game.Workspace.CurrentCamera
local Viewport = Camera.ViewportSize
local Position = Vector2.new(Viewport.X / 2, Viewport.Y / 2)

local circle = Drawing.new("Circle")
circle.Radius = 50
circle.Color = Color3.fromRGB(255, 0, 0)
circle.Filled = true
circle.NumSides = 150
circle.Position = Position
circle.Transparency = 0
circle.Visible = true

print(circle.__OBJECT_EXISTS) -- Output: true
circle:Destroy()
print(circle.__OBJECT_EXISTS) -- Output: false
